CABINET FEEDER

EZ608

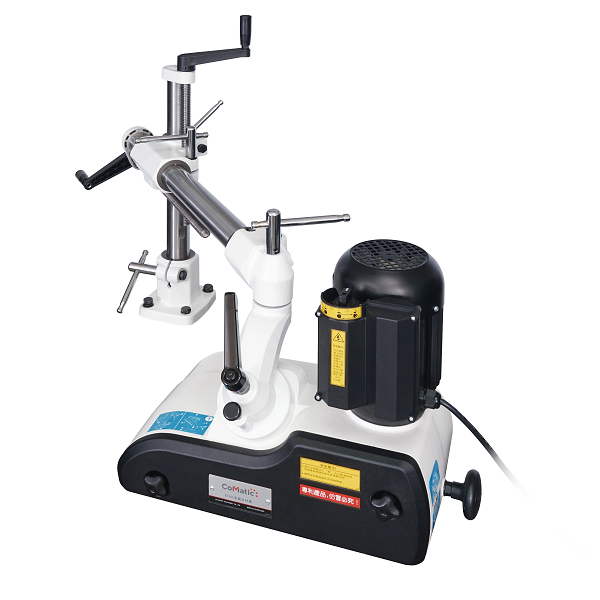

This is a medium duty power feeder, ideal to use in conjunction with medium sized wood processing machines. The EZ608 Cabinet Feeder has six rollers and eight speeds which provides ultimate stock feeding experience.

Medium Duty Model



Our EZ608 Cabinet Feeder may be mounted for use with various woodworking machinery.

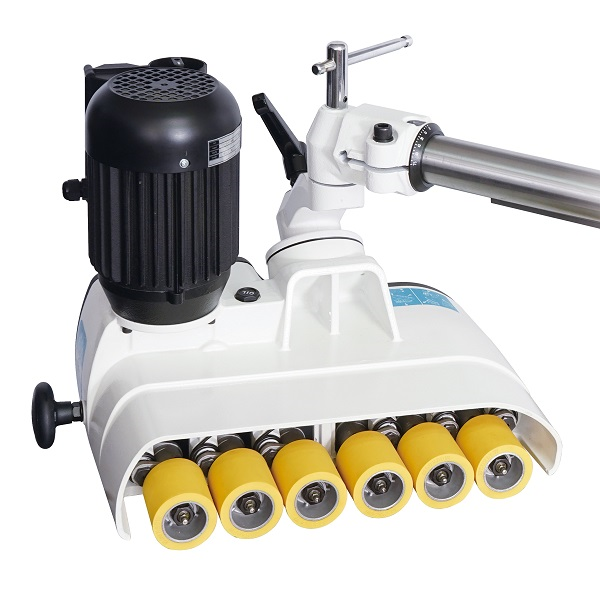

6 Rollers and Roller Suspension



6 rollers of Φ59 x 60 mm provide secure non-marking grip. Rollers are all spring loaded to maintain a constant pressure, with roller suspension up to 9mm (3/8").





Even Feed Speed



With an interchangeable gear set, the EZ608 provides a range of speed options. Reverse feed is available via a selection switch.

  Horsepower/ Rotation

  375W (1/2HP), 1 or 3 phase; Forward/ Reverse

  Range of Speeds (50Hz) / (60Hz)

  3 PH : 3.5/5.5/7/9/11/14/18/28 M/min ;
  1 PH : 3.5/5.5/9/14 M/min
 (3 PH : 11.5/18/23/30/36/46/60/92 FPM ;
  1 PH : 11.5/18/30/46 FPM)

  Rollers**

  Φ59 x 60 mm x 6pcs (Φ2-3/10" x 2-3/10" x 6pcs)

  Roller Suspension   9 mm (3/8")
  Net Weight

  31 + 25 Kg (68.4 + 55 Lb)

  Gross Weight

  33.5 + 27 Kg (74 + 59 Lb)

  Packing Size   Body: 585 x 500 x 388 mm (23" × 19-11/16" × 15-1/4")
  Stand: 770 x 230 x 260 mm (30-3/8" x 9" x 10-1/4")
  20' Container Loading   140 Sets



**GR06 ROLLER (Standard); GU06 PU ROLLER (Optional)



Specifications subject to change without notice.
